Seatpost

€298.90 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

Total length:

Diameter:

Design:

  • ST_UDM_254_320
  • ● more than 1 available

One seat post, many possibilities. The offset of a seat post is not as easy to quantify as may... more

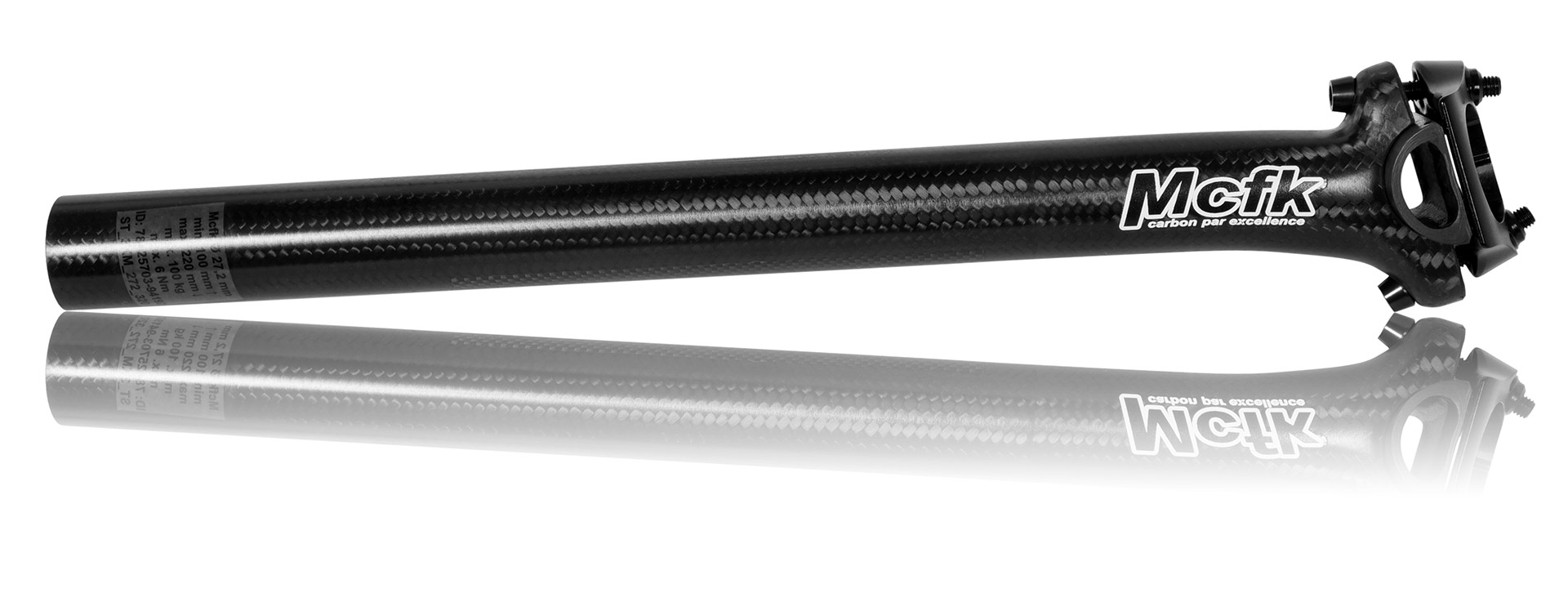

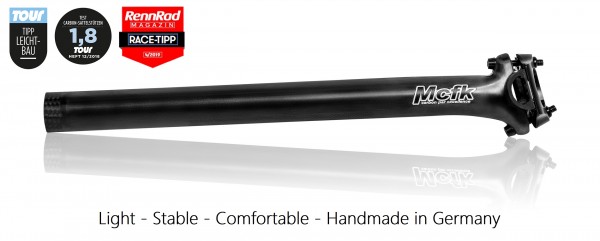

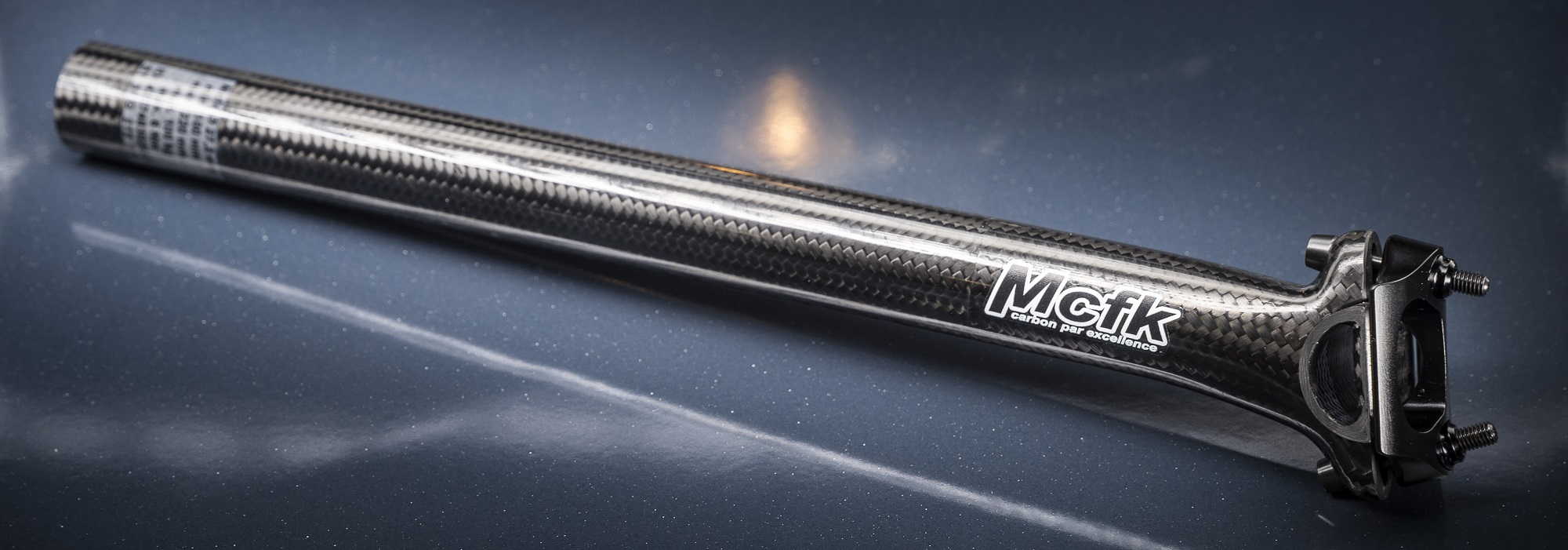

Seatpost - Mcfk

One seat post, many possibilities.

The offset of a seat post is not as easy to quantify as may seem. If you focus on what is essential you will find quickly that the offset is limited only by two components. One is the clamping plate of the seat post and the other is the length of the seat rail. Our short clamping plate provides a wide range for seat adjustment.

Outstanding performance.

Our seat posts are optimum in terms of durability, comfort and weight. At present, hardly any post uses carbon as material more efficiently than our posts do.

We use complex sophisticated asymmetrical layer design of varying diameter, length and range of adjustment. Only this development effort and the high-precision manual manufacture, at our site in Germany, guarantee the high stability, the low weight and our exceptionally outstanding manufacture.

You can install seats both with round stays or highly oval carbon seat rails with a high adjustment range on our 2-screw clamping mechanism with high-strength aluminium clamping parts and high-precision, black carbon rocker and black high-precision titanium screws.

The clamp is of sufficient stability not to fail in excess load situations and the long seat support places less stress on the seat rail.

Our seatposts are Di2 compatible. They are suitable for the internal battery SM-BTR2 and BT_DN300. For clamping, we recommend commercially available battery holders, such as those from Pro or Easton. These are simply pushed into the seat post in connection with the battery. The only thing to consider when making your selection is the correct support diameter.

Sattelstütze



Material post: Carbon Prepreg Material screws: Titan Ti6Al4V... mehr

Material post:

Carbon Prepreg

Material screws:

Titan Ti6Al4V (DIN 912)

Logo:

decal (easily removable)

Color screws:

black

Clamping plate material:

EN AW-7075 T6 Aluminium

Half-shell material:

Carbon

Design:

UD Matt

3K Matt

Range of use:

MTB, race, cyclo-cross

Features:

Di2 ready

Max. drivers weight:

100 kg

Diameter:

25,4 mm | 27,2 mm | 30,9 mm | 31,6 mm

Offset: 5 mm

Standard pullout:

length 320 mm: 100 mm - 220 mm
length 420 mm: 200 mm - 320 mm

Weight:

from 122 g







Seatpost - User manual Download mehr
